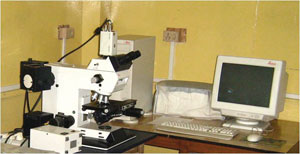

HIGH RESOLUTION OPTICAL MICROSCOPE WITH IMAGE ANALYSER
Model: LEICA Q600
(Installed in 1998)

This is a high resolution universal optical microscope with true colour processing capability and analysis system Q600. This system can be used to investigate micro and macro specimens objectively to provide information regarding the microstructure, their quantity, size, area, shape and phase. Images are captured using light optical Microscope. Grabbed images are analyzed using image analysis software

Applications:
Materials Science, Biological Science, Life Science, Pharmaceuticals, Semiconductors, Environmental Science etc.

Specifications:
Field of view: 28mm
Magnification Range: 10X to 250X and can be extended further by 2.5X and 3.2X factors.
Illumination: 12V/100W (NORMAL) 50W(UV)
Contrast: Bright field, Dark field, Phase contrast, Interference contrast and Fluorescence
OUTPUT: Photo automat (WILD MPS 48/52) and / or COLOUR INKJET.
Instructions to users: The samples can be either on a glass slide or mounted on acrylic/bakelite mounts. Users may also write for specific instructions according to sample type.

Contact Tel. No. : 0364 2721806; 0364 272 1815.
